Henan Jinzhen Boiler Company
Rated steam capacity:0.5ton-20ton/h;
Fuel:natural gas, diesel,heavy fuel oil, lpg,lng,cng,biogas,etc;
Rated steam pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar);
Application scope: the pharmaceutical, paper making, tobacco, printing and dyeing, garment and other industries. Civil: catering, laundry room, (hospital) disinfection, sauna, etc.

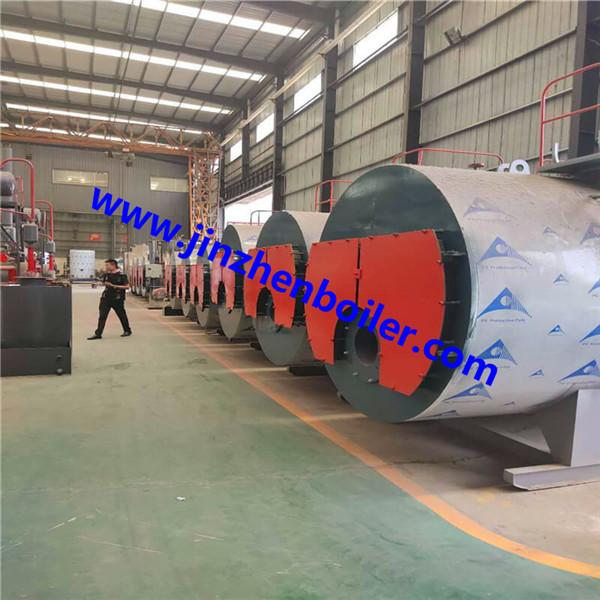

WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technology,equipped with international first-level brand burners and valve groups,and independently developed high-matching PLC control system to realize muitiple linkages.The lock protection function protects the equipment running safely.
1. Boiler design Horizontal internal combustion three return journey full wet back design, 100% corrugated furnace, with good thermal retrability, water cooled retrorse chamber, retrorse chamber and back tubeplate butt joint, lowest stress, more reliable quality.
2, large diameter corrugated furnace The boiler combustion chamber is composed of a large diameter full ripple furnace with large combustion space, complete fuel combustion, effective heat absorption and thermal expansion, and large radiation heating surface.
3. Sufficient heat The heating area of the boiler is designed to be more than 25 square meters/ton, fully absorbing effective heat, low smoke exhaust temperature, small heat loss, ensuring sufficient output and high efficiency.
4. Steam quality Pot shell diameter, large water capacity, strong adaptability to load changes, stable output, steam space volume, soda interface and steam outlet net distance is high, low steam humidity.

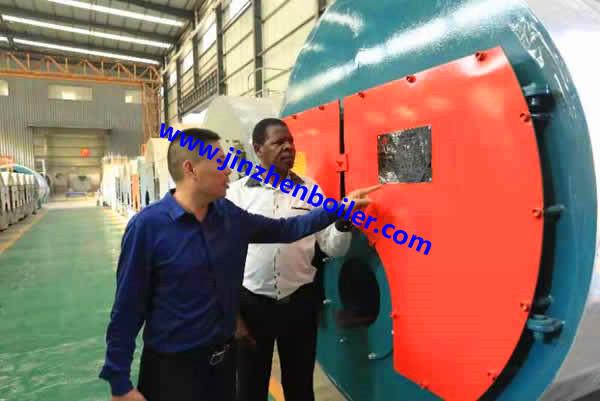

5. Multi-functional safety and explosion protection device The back plate of the boiler is equipped with the explosion-proof device which is connected with the furnace to prevent the high energy of the discharge moment when the fuel is violently deflated in the furnace, and it can automatically reset. Meanwhile, it has the function of the fire-viewing mirror and the maintenance channel. It makes use of the adjustment of the burning flame in operation, and makes the furnace inspection and maintenance convenient.

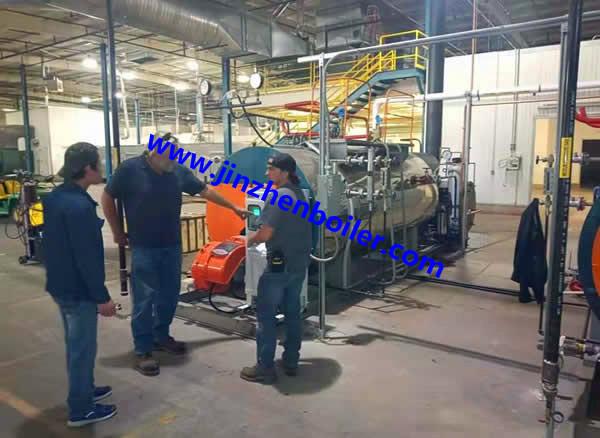

Gas/oil fired steam boiler is widely used in hospitals, schools, textile mills, garment factories, large supermarket, garment factories, dyeing factory, hotel, dining room, restaurant, food factory, beverage factory, soy products, meat products factory, cannery, brewery, pharmaceutical factory, packaging plant, building materials factory, paint factory, swimming pool and other places of the enterprises and institutions.
